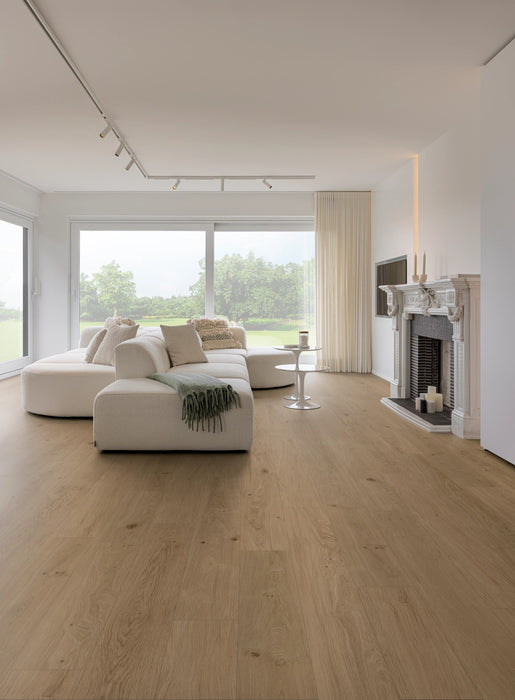

COREtec | Authentics 1200 MB E Richmond

Click LVT Installation Guide

1. Acclimatise the Tiles or Planks: Leave the packs unopened in the room for at least 24 to 48 hours before fitting, at normal room temperature. LVT is far more dimensionally stable than laminate, but it's still good practice, especially if the room has recently been colder or warmer than normal.

2. Prepare the Subfloor: The subfloor needs to be level, clean, dry, and structurally sound. Remove old flooring and repair any cracks or damage, since a rigid click floor will still show through subfloor imperfections over time, even though LVT tends to be more forgiving than laminate.

3. Measure the Area and Allow for Waste: Measure the room and add 5 to 10% extra for wastage on a plank layout, or 15 to 20% if you're laying herringbone, which needs far more angled cutting around the perimeter.

4. Install the Underlay, if Needed: Some click LVT ranges include an integrated acoustic backing already attached to the plank, so check your product's specification before buying a separate underlay. Where one is needed, roll it out and butt the joints together as usual.

5. Lay the Flooring:
For plank: start in the corner of the longest, straightest wall, working left to right, and use spacers around the full perimeter to maintain an expansion gap, typically 5 to 10mm for LVT, smaller than laminate needs, but always check your specific product's guidance. Click each plank into place with the tapping block and mallet, and stagger the end joints between rows by at least 20 to 30cm.
For herringbone: set the room out first. Find the centre point, snap a chalk line down its length and a second line at a true right angle across it, then dry lay a row along these lines to confirm the pattern sits square before locking anything into place. Work outward from the centre in both directions so the final cut pieces land evenly on opposite walls.
In both cases, the floor should float freely, don't glue or fix it to the subfloor.

6. Cutting Tiles or Planks: Standard flexible LVT can usually be cut by scoring firmly along a straightedge with a sharp utility knife and snapping it cleanly along the line. Rigid SPC or WPC core planks are too stiff to snap and need a fine tooth saw or a dedicated vinyl plank cutter instead. For herringbone, mark and number each perimeter piece individually as you go, since the angled cuts are rarely identical from one edge to the next.

7. Finishing Touches: Remove the spacers, then fit skirting or scotia beading to cover the expansion gap and transition strips at doorways where the LVT meets another floor type.

DIY vs. Professional Installation
Plank click LVT is one of the more DIY-friendly flooring types available, thanks to the floating click system and forgiving nature of the material. Herringbone is a different matter, the setting out in step 5 is unforgiving of a wonky start, so while it's still achievable as a confident DIY project, professional installation is worth considering if you're not comfortable measuring and squaring a room precisely.

Can I install COREtec® myself?
Yes. Our rigid planks and tiles use a floating installation method that clicks together with an angle-tap joint, and it's straightforward enough for the average confident DIYer to fit.

What tools do I need to install COREtec®?
You'll need a hammer, a tapping block, and a pull bar, along with 6mm (¼ inch) spacers, a crosscut power saw fitted with a blade suitable for plastics, a pencil, a chalk line, and a tape measure.

Where can I install COREtec®?
Our planks and tiles are 100% waterproof and can be installed in any room of the home, from basement to attic. COREtec® is designed for indoor use only, and must be stored and installed in a temperature controlled environment between 13°C and 29°C.

Does COREtec® come with underlay already attached?
Many COREtec® ranges include a cork underlayment bonded to the back of each plank, adding comfort underfoot and helping with sound absorption without needing a separate underlay. Check the specification of your chosen range to confirm.

Can I install COREtec® over underfloor heating and cooling?
Yes. Refer to the installation manual for detailed guidance and temperature considerations before fitting.

Do I need to leave an expansion gap?
Yes. COREtec® is highly dimensionally stable but can still expand and contract slightly with temperature changes, so leave a 6mm gap next to walls and any adjoining flooring to allow for this movement.

Can I install COREtec® outdoors?
No. COREtec® is designed for indoor use only, and installing it outdoors will void the product warranty.

How do I clean my COREtec® floor?
Wipe or dry mop regularly to remove dirt, dust, and grit, avoiding treated dust mops which can leave a residue that dulls the floor over time. For a deeper clean, use a pH neutral cleaner with no polish or detergent, we recommend COREtec® Daily Cleaner for everyday maintenance and COREtec® Deep Cleaner for periodic deep cleaning. Always vacuum or dust mop before wet cleaning, and avoid vacuums with rotary beater bars, steam mops, and mop and shine products.

Does my COREtec® floor come with a warranty?
Yes. COREtec® offers a lifetime warranty for residential use and a 10 year warranty for commercial use.
