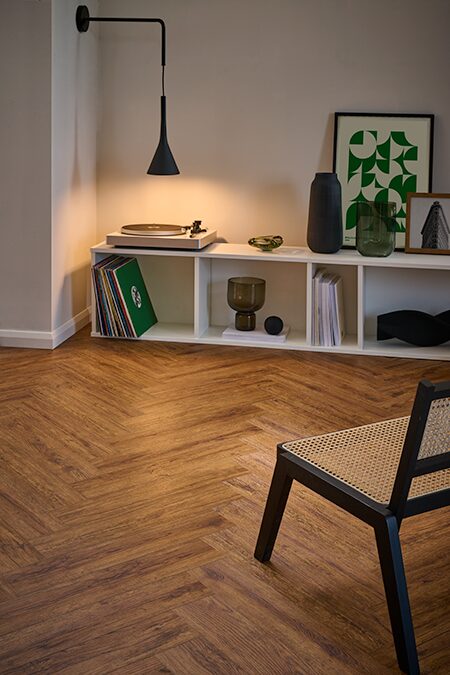

Woodpecker | Weymouth Vine Oak Herringbone

Click LVT Installation Guide

1. Acclimatise the Tiles or Planks: Leave the packs unopened in the room for at least 24 to 48 hours before fitting, at normal room temperature. LVT is far more dimensionally stable than laminate, but it's still good practice, especially if the room has recently been colder or warmer than normal.

2. Prepare the Subfloor: The subfloor needs to be level, clean, dry, and structurally sound. Remove old flooring and repair any cracks or damage, since a rigid click floor will still show through subfloor imperfections over time, even though LVT tends to be more forgiving than laminate.

3. Measure the Area and Allow for Waste: Measure the room and add 5 to 10% extra for wastage on a plank layout, or 15 to 20% if you're laying herringbone, which needs far more angled cutting around the perimeter.

4. Install the Underlay, if Needed: Some click LVT ranges include an integrated acoustic backing already attached to the plank, so check your product's specification before buying a separate underlay. Where one is needed, roll it out and butt the joints together as usual.

5. Lay the Flooring:
For plank: start in the corner of the longest, straightest wall, working left to right, and use spacers around the full perimeter to maintain an expansion gap, typically 5 to 10mm for LVT, smaller than laminate needs, but always check your specific product's guidance. Click each plank into place with the tapping block and mallet, and stagger the end joints between rows by at least 20 to 30cm.
For herringbone: set the room out first. Find the centre point, snap a chalk line down its length and a second line at a true right angle across it, then dry lay a row along these lines to confirm the pattern sits square before locking anything into place. Work outward from the centre in both directions so the final cut pieces land evenly on opposite walls.
In both cases, the floor should float freely, don't glue or fix it to the subfloor.

6. Cutting Tiles or Planks: Standard flexible LVT can usually be cut by scoring firmly along a straightedge with a sharp utility knife and snapping it cleanly along the line. Rigid SPC or WPC core planks are too stiff to snap and need a fine tooth saw or a dedicated vinyl plank cutter instead. For herringbone, mark and number each perimeter piece individually as you go, since the angled cuts are rarely identical from one edge to the next.

7. Finishing Touches: Remove the spacers, then fit skirting or scotia beading to cover the expansion gap and transition strips at doorways where the LVT meets another floor type.

DIY vs. Professional Installation
Plank click LVT is one of the more DIY-friendly flooring types available, thanks to the floating click system and forgiving nature of the material. Herringbone is a different matter, the setting out in step 5 is unforgiving of a wonky start, so while it's still achievable as a confident DIY project, professional installation is worth considering if you're not comfortable measuring and squaring a room precisely.

Does my Weymouth floor need to acclimatise before installing?
Yes, we recommend allowing your Weymouth floor to acclimatise for at least 24 hours before installation. Keep it in the same room where it will be installed, and ensure it remains within the sealed packaging to prevent warping due to temperature changes.

What condition should the subfloor be in for installing Weymouth flooring?
The subfloor must be structurally sound, free from dampness, rot, fungal or insect infestation, and debris. Ensure the surface is flat with no uneven areas exceeding 3mm over a 2m span. Hot pipes should be well insulated to prevent hotspots that could distort the flooring.

Do I need to leave an expansion gap for my Weymouth floor?
Under normal living conditions (15-25°C), no expansion gap is required. However, allow a gap of 2-3mm for Weymouth floors in areas with temperature variations beyond normal living conditions, such as conservatories.

How do I clean my Weymouth floor?
You can use our cleaning kits for lacquered floors to keep your Weymouth floor shining. Alternatively, use a well-wrung damp mop for regular cleaning.

My Weymouth floor has a scratch, how can I repair it?
Small scratches and marks on our Weymouth range can be concealed with Scratchfix, a quick and easy method to restore scratches on resilient floors.

Do I need additional underlay with my Weymouth floor?
No, Weymouth floors come with built-in underlay, so additional underlay should not be used to prevent damage to the joints. If you need to raise the height of the floor, we recommend using plywood.

Is Weymouth wood-effect or real wood?
Weymouth is wood-effect flooring, featuring a stable mineral composite core and resilient, slip-resistant vinyl.

Can I use Weymouth flooring in a wet room?
While Weymouth is waterproof, prolonged exposure to continuous water is not recommended. It's suitable for bathrooms but not recommended for wet rooms.

Can I use this floor with underfloor heating?
Yes, you can use Weymouth flooring with underfloor heating systems.

What type of joint does this floor have?
This floor features click-joints for easy installation.

How can this floor be laid?
This floor should only be floated during installation.

What is the wear rating for Weymouth flooring?
Weymouth flooring has a wear rating of AC4.

What slip resistance rating does Weymouth have?
Weymouth flooring has a slip resistance rating of R10.

How thick is Weymouth flooring?
Weymouth flooring is 6mm thick.
